Compact and Smart Fuel Transport Solution

The JAC Junling V5 7500L Fuel Tank Truck is a versatile and efficient vehicle designed for transporting gasoline, diesel, and kerosene. Powered by a Weichai 130 HP engine and built with a 4.5mm national standard steel tank, this truck offers reliability and safety, enhanced by a feature-rich cab and a specialized hazardous goods chassis.

Chassis Configuration

  • Engine: Weichai WP2.3NQ130E61, 130 horsepower
  • Transmission: Xingrui 6-speed gearbox

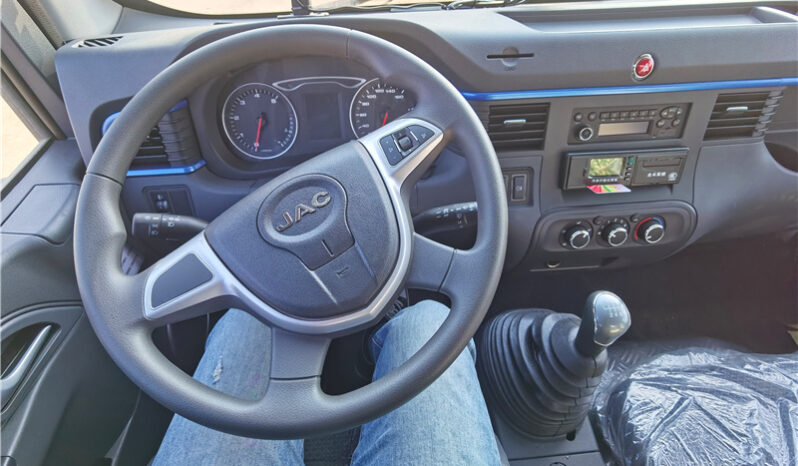

  • Cab: Single-row, 1900mm wide-body, 3-seat
  • Wheelbase: 3365 mm
  • Tires: 7.00R16 steel wire tires
  • Braking: Air brake system
  • Safety Features:
    • ABS
    • Front disc brakes
    • Speed limiter
    • Tire blowout protection
    • Brake pad wear alarm
    • Driving recorder
    • Exhaust brake
  • Comfort and Tech:
    • Hydraulic power steering
    • Air-assisted clutch
    • Air conditioning
    • Power windows
    • Central locking
    • Multi-function steering wheel (with entertainment and cruise control)
    • Adjustable steering column
    • Heated rearview mirrors
    • LED daytime running lights
    • MP3 player
    • 100L aluminized zinc fuel tank
    • OBD interface
    • Frame-style rearview mirrors
    • Sunroof vent
    • Multi-function eagle-eye dashboard with voice alerts
    • Engine fuel preheating
    • Chassis self-diagnostic system
  • Extras: PTO and remote throttle wiring, electromagnetic master switch

Tank Features

  • Capacity: Announced as 4.4/5.1 m³ (approx. 7500L actual)
  • Medium: Gasoline, diesel, kerosene
  • Material: 4.5mm national standard steel
  • Design: Single compartment with pump
  • Vehicle Dimensions: 5990 × 2050 × 2550 mm
  • Gross Weight: 7365 kg

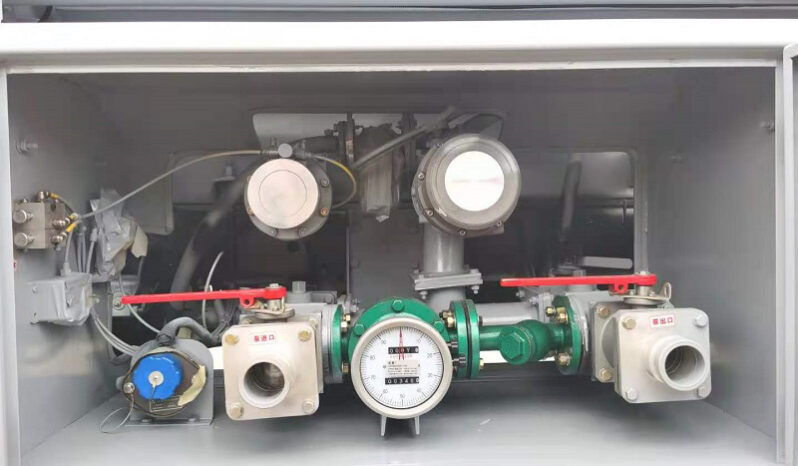

  • European-Standard Bottom-Loading System:
    • 1 European-standard tank cover
    • 1 submarine valve
    • 1 bottom-loading valve
    • 1 vapor recovery valve and interface
    • 1 anti-overflow probe with electrostatic socket
  • Safety Enhancements:
    • Foldable tank-top guardrails
    • Silver-gray tank with reflective tape
    • 2 delivery hoses with barrels
    • Fire cap
    • Anti-static measures
  • Signage: Safety warning signs

Why Choose This Truck?

The JAC Junling V5 7500L Fuel Tank Truck offers a compact yet powerful solution for fuel transport. Its Weichai 130 HP engine ensures dependable performance, while the smart cab with multi-function features enhances driver comfort. Equipped with European-standard fittings, ABS, and advanced safety systems like TPMS and EBS, it’s ideal for businesses needing a cost-effective, compliant, and tech-savvy refueling vehicle.
